Live Sample Project

Foundation Layout Demo

See how ConcretePro handles a real 16-wall commercial foundation — from CAD drawing to panel layout to load list, all generated automatically.

Try ConcretePro Free →

CAD Drawing & Wall Detection

Upload any foundation drawing. ConcretePro detects walls, numbers them, and calculates concrete volumes, footing totals, wall ties, and floor zones — all from the PDF.

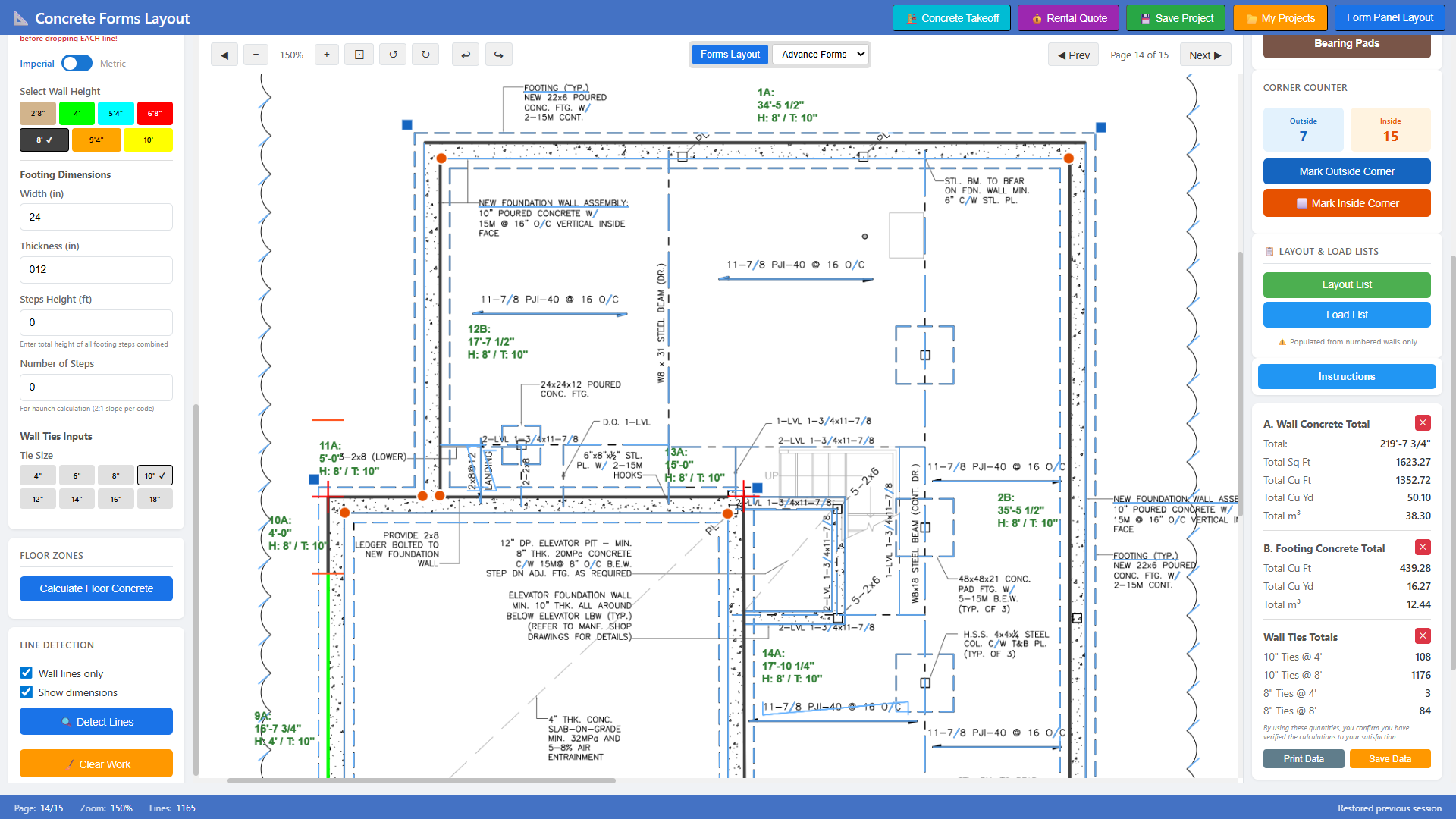

Foundation CAD drawing with numbered walls - upper section

Walls numbered and measured directly on the drawing — 16 walls detected

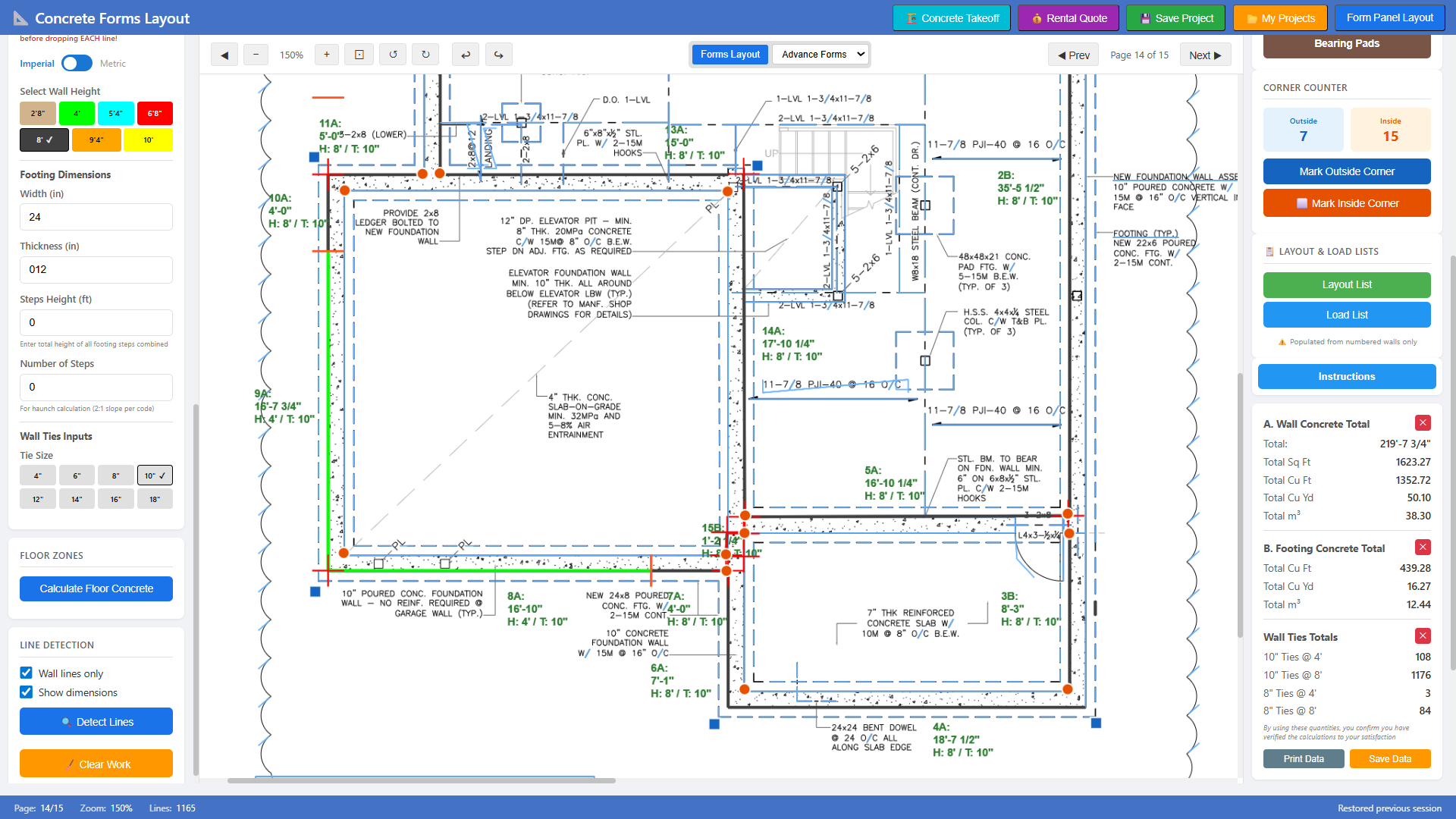

Foundation CAD drawing with numbered walls - lower section

Lower section showing garage walls, tee intersections, and bearing pads

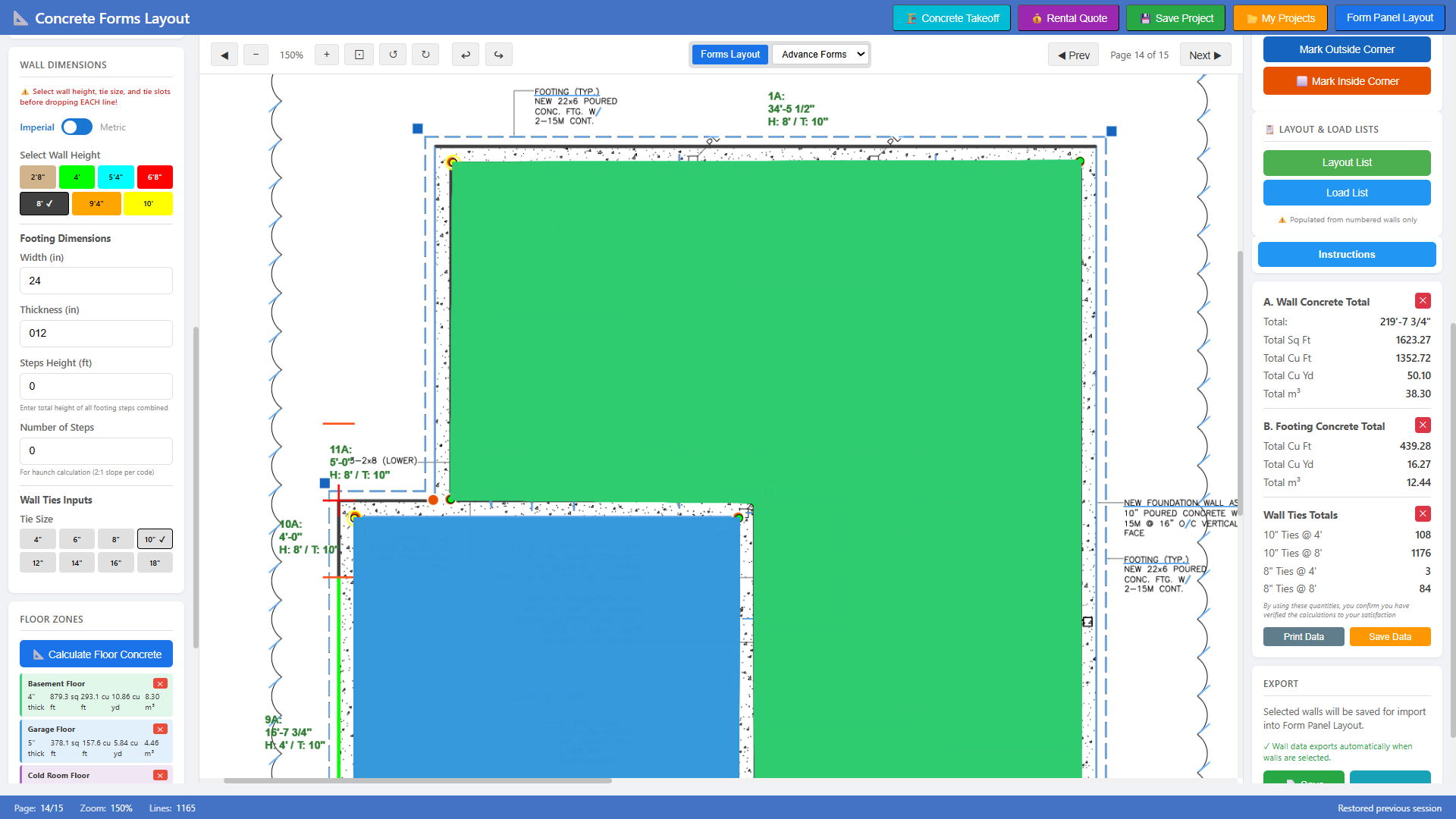

Floor zones highlighted on foundation drawing

Floor zones calculated — basement, garage, cold room, and porch floors

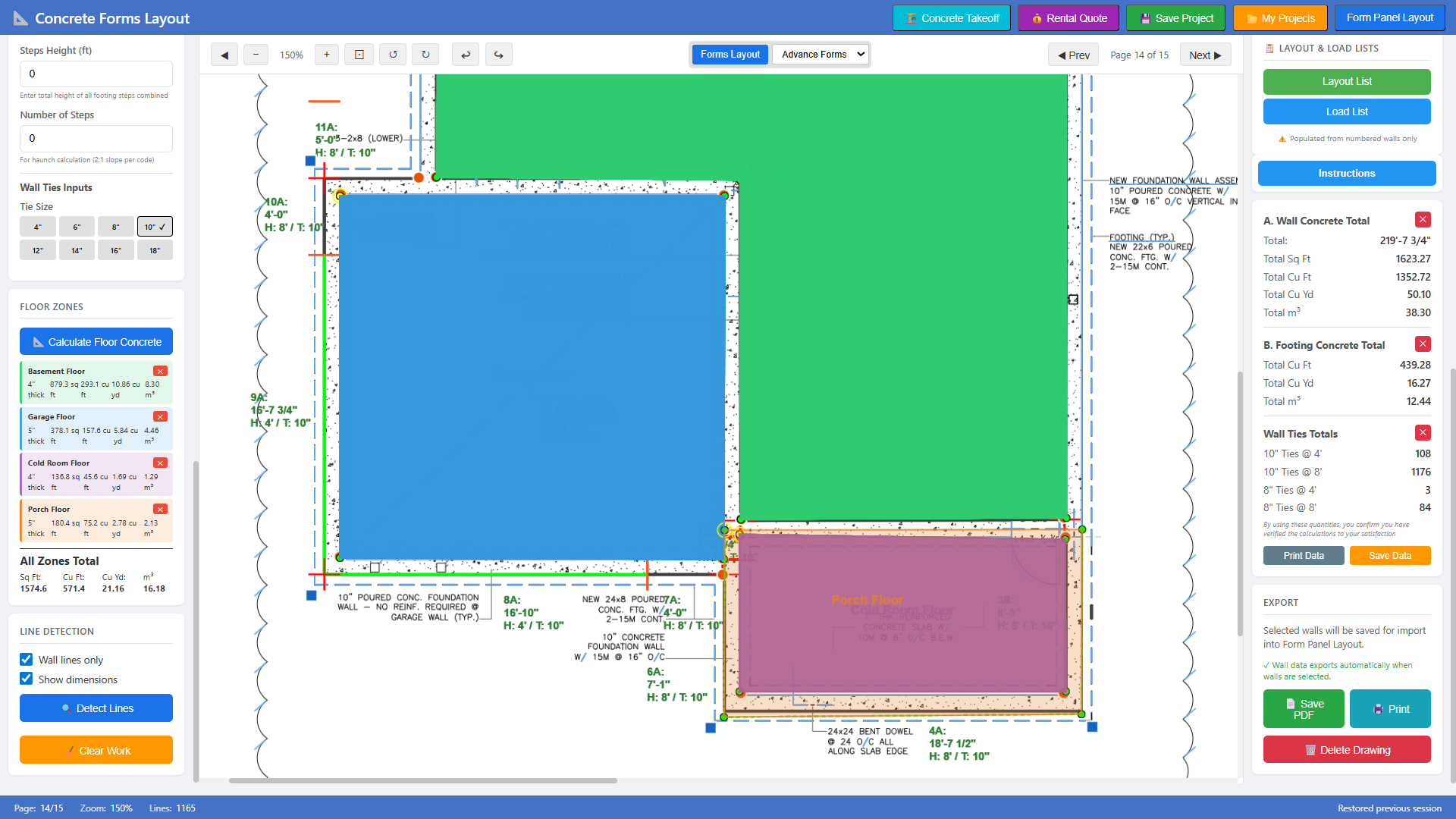

Complete foundation with all floor zones

Complete takeoff: 1,574 sq ft of floors, 571 cu ft concrete across 4 zones

Layout List

Every wall broken down by panel size — 24" down to 4" — with A-side and B-side layouts, tie size and quantity per wall, and gap calculations. Ready to hand to your crew.

📄 Layout List — 16 Walls, 2 Height Groups, Concrete Summary

Load List

Total panel counts by size and height, corner details, tee wall specs, and tie totals — with support for multiple tie sizes and wall heights in the same layout, all calculated at the same time. Everything the yard needs to load your truck.

📋 Load List — Panel Totals, Corners, Tee Walls, Ties

Cost Sheet

Complete project costing with materials, labour, equipment, and profit margin — all calculated automatically from your takeoff data.

📊 Cost Sheet — Full Project Breakdown

Concrete Sheet

Detailed concrete volumes by pour type — walls, footings, floors, bearing pads — with metric and imperial units.

🧱 Concrete Details — Volumes by Pour Type

Rebar Sheet

Rebar quantities calculated from wall dimensions — horizontal, vertical, dowels, and lap splices.

🔩 Rebar Details — Quantities & Placement

Invoice

Numbered invoices auto-generated from project data. Fully customizable for each contractor's business — your logo, your terms, your numbering.

🧾 Invoice — Auto-Numbered, Fully Customizable

Contract

Professional contracts with scope, terms, and pricing pulled directly from the estimate. Customizable per contractor.

📝 Contract — Scope, Terms & Pricing

Ready to Estimate Faster?

Join contractors across Canada using ConcretePro to cut estimating time by 80%.

Start Your Free Trial →
